Google Docs connector

1. Install the SDK

   Node.js

   npm install @scalekit-sdk/node

   Python

   pip install scalekit

   Full SDK reference: Node.js | Python

2. Set your credentials

   Add your Scalekit credentials to your .env file. Find values in app.scalekit.com > Developers > API Credentials.

   .env

   SCALEKIT_ENVIRONMENT_URL=<your-environment-url>
   SCALEKIT_CLIENT_ID=<your-client-id>
   SCALEKIT_CLIENT_SECRET=<your-client-secret>

3. Set up the connector

   Register your Google Docs credentials with Scalekit so it handles the token lifecycle. You do this once per environment.

   Dashboard setup steps

   Register your Scalekit environment with the Google Docs connector so Scalekit handles the authentication flow and token lifecycle for you. The connection name you create will be used to identify and invoke the connection programmatically. Then complete the configuration in your application as follows:

   1. Set up auth redirects

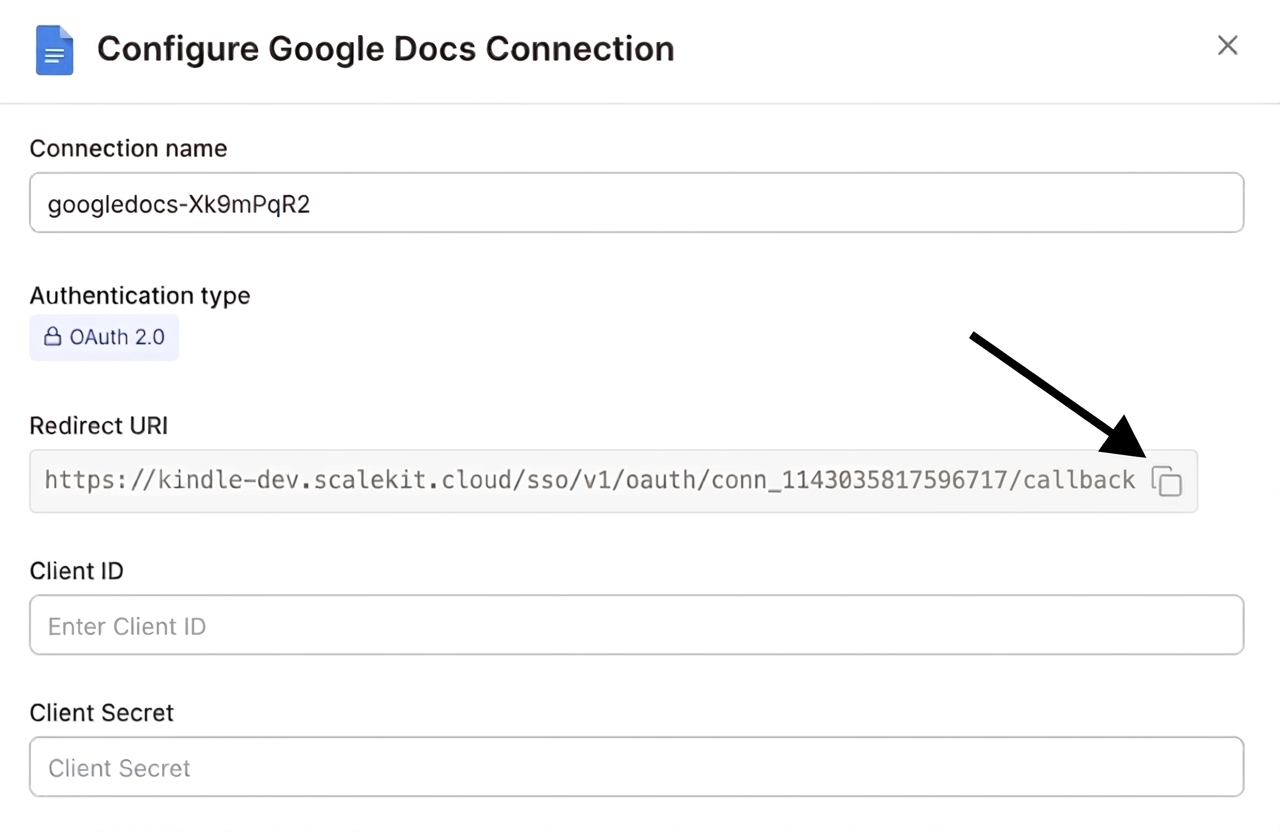

      • In Scalekit dashboard, go to AgentKit > Connections > Create Connection. Find Google Docs and click Create. Click Use your own credentials and copy the redirect URI. It looks like https://<SCALEKIT_ENVIRONMENT_URL>/sso/v1/oauth/<CONNECTION_ID>/callback.



      • Navigate to Google Cloud Console → APIs & Services → Credentials. Select + Create Credentials, then OAuth client ID. Choose Web application from the Application type menu.



      • Under Authorized redirect URIs, click + Add URI, paste the redirect URI, and click Create.



   2. Enable the Google Docs API

      • In Google Cloud Console, go to APIs & Services → Library. Search for “Google Docs API” and click Enable.

   3. Get client credentials

      • Google provides your Client ID and Client Secret after you create the OAuth client ID in step 1.

   4. Add credentials in Scalekit

      • In Scalekit dashboard, go to AgentKit > Connections and open the connection you created.

      • Enter your credentials:

        • Client ID (from above)
        • Client Secret (from above)
        • Permissions (scopes — see Google API Scopes reference)



      • Click Save.

4. Authorize and make your first call

   Node.js

   quickstart.ts

   import { ScalekitClient } from '@scalekit-sdk/node'
   import 'dotenv/config'

   const scalekit = new ScalekitClient(
     process.env.SCALEKIT_ENV_URL,
     process.env.SCALEKIT_CLIENT_ID,
     process.env.SCALEKIT_CLIENT_SECRET,
   )
   const actions = scalekit.actions

   const connector = 'googledocs'
   const identifier = 'user_123'

   // Generate an authorization link for the user
   const { link } = await actions.getAuthorizationLink({ connectionName: connector, identifier })
   console.log('Authorize Google Docs:', link)
   process.stdout.write('Press Enter after authorizing...')
   await new Promise(r => process.stdin.once('data', r))

   // Make your first call
   const result = await actions.executeTool({
     connector,
     identifier,
     toolName: 'googledocs_list_documents',
     toolInput: {},
   })
   console.log(result)

   Python

   quickstart.py

   import os
   from scalekit.client import ScalekitClient
   from dotenv import load_dotenv
   load_dotenv()

   scalekit_client = ScalekitClient(
       env_url=os.getenv("SCALEKIT_ENV_URL"),
       client_id=os.getenv("SCALEKIT_CLIENT_ID"),
       client_secret=os.getenv("SCALEKIT_CLIENT_SECRET"),
   )
   actions = scalekit_client.actions

   connection_name = "googledocs"
   identifier = "user_123"

   # Generate an authorization link for the user
   link_response = actions.get_authorization_link(
       connection_name=connection_name,
       identifier=identifier,
   )
   print("Authorize Google Docs:", link_response.link)
   input("Press Enter after authorizing...")

   # Make your first call
   result = actions.execute_tool(
       tool_input={},
       tool_name="googledocs_list_documents",
       connection_name=connection_name,
       identifier=identifier,
   )
   print(result)

What you can do

Connect this agent connector to let your agent:

• Style apply text — Apply character formatting (bold, italic, underline, strikethrough, font size) to a range of text in a Google Doc
• Document copy, export — Duplicate a Google Doc
• Create comment, document, named range — Add a comment to a Google Doc
• Delete comment, content range, named range — Permanently delete a comment from a Google Doc
• Image insert inline — Insert an inline image from a publicly accessible URL into a Google Doc
• Break insert page — Insert a page break into a Google Doc

Common workflows

Proxy API call

Node.js

const result = await actions.request({
  connectionName: 'googledocs',
  identifier: 'user_123',
  path: '/v1/documents/<DOCUMENT_ID>',
  method: 'GET',
});
console.log(result);

Python

result = actions.request(
    connection_name='googledocs',
    identifier='user_123',
    path="/v1/documents/<DOCUMENT_ID>",
    method="GET"
)
print(result)

googledocs_create_document

Create a new blank Google Doc with an optional title. Returns the new document’s ID and metadata.

Name	Type	Required	Description
schema_version	string	No	Optional schema version to use for tool execution
title	string	No	Title of the new document
tool_version	string	No	Optional tool version to use for execution

googledocs_read_document

Read the complete content and structure of a Google Doc including text, formatting, tables, and metadata.

Name	Type	Required	Description
document_id	string	Yes	The ID of the Google Doc to read
schema_version	string	No	Optional schema version to use for tool execution
suggestions_view_mode	string	No	How suggestions are rendered in the response
tool_version	string	No	Optional tool version to use for execution

googledocs_update_document

Update the content of an existing Google Doc using batch update requests. Supports inserting and deleting text, formatting, tables, and other document elements.

Name	Type	Required	Description
document_id	string	Yes	The ID of the Google Doc to update
requests	array<object>	Yes	Array of update requests to apply to the document
schema_version	string	No	Optional schema version to use for tool execution
tool_version	string	No	Optional tool version to use for execution
write_control	object	No	Optional write control for revision management

Execute a tool

Node.js

const result = await actions.executeTool({
  connector: 'googledocs',
  identifier: 'user_123',
  toolName: 'googledocs_create_document',
  toolInput: {},
});
console.log(result);

Python

result = actions.execute_tool(
    connection_name='googledocs',
    identifier='user_123',
    tool_name='googledocs_create_document',
    tool_input={},
)
print(result)

Google OAuth consent screen verification

Before you use your own Google OAuth credentials in production, understand what end users see on Google’s consent screen when they authorize a connected account.

Audience type	Consent screen behavior	When to use
Internal	Shows your App Name and logo from Branding settings	Only users in your Google Workspace or Cloud Identity organization can authorize the connector
External	Shows {env_name}.scalekit.dev until Google verifies your app	Any user with a Google account can authorize the connector

Why External is required for most AgentKit connectors:

• Internal restricts authorization to users in your Google Workspace or Cloud Identity organization. Users with @gmail.com or other Google accounts outside your organization cannot complete OAuth.
• External is required when end users outside your organization authorize tool access through connected accounts.
• Organization-managed OAuth clients follow the same rules as personal or developer OAuth clients. Switching to an org-owned client does not bypass Google verification.
• Until Google completes verification of your External app, users see scalekit.dev on the consent screen. After verification, your App Name and logo appear.

Separate from Scalekit domain verification

This is Google’s OAuth consent screen behavior—not Scalekit’s. Custom domain controls your Scalekit environment URL for MCP auth branding. It does not replace Google’s app verification for OAuth consent screens.

During development:

• Add Test users under APIs & Services → OAuth consent screen while publishing status is Testing.
• On unverified apps, users can click Advanced → Go to app (unsafe) to proceed during testing.
• Google Workspace admins may need to allowlist your OAuth client.

For Google’s verification requirements and timeline, refer to Google’s OAuth consent screen verification guide.

Tool list

Use the exact tool names from the Tool list below when you call execute_tool. If you’re not sure which name to use, list the tools available for the current user first.

googledocs_apply_text_style#Apply character formatting (bold, italic, underline, strikethrough, font size) to a range of text in a Google Doc. Only the attributes you set are changed.10 params▾

Apply character formatting (bold, italic, underline, strikethrough, font size) to a range of text in a Google Doc. Only the attributes you set are changed.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc to edit

end_indexintegerrequiredEnd index of the range to format (exclusive)

start_indexintegerrequiredZero-based start index of the range to format (inclusive)

boldbooleanoptionalSet text to bold (true) or non-bold (false)

font_size_ptnumberoptionalFont size in points

italicbooleanoptionalSet text to italic (true) or non-italic (false)

schema_versionstringoptionalOptional schema version to use for tool execution

strikethroughbooleanoptionalSet text to struck through (true) or not (false)

tool_versionstringoptionalOptional tool version to use for execution

underlinebooleanoptionalSet text to underlined (true) or not (false)

googledocs_copy_document#Duplicate a Google Doc. Optionally rename the copy or place it in a specific Drive folder. Uses the Drive API and returns the new document's metadata.5 params▾

Duplicate a Google Doc. Optionally rename the copy or place it in a specific Drive folder. Uses the Drive API and returns the new document's metadata.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc to copy

namestringoptionalName for the copied document. If omitted, the copy is named 'Copy of <original name>'.

parent_folder_idstringoptionalID of the destination folder for the copy. If omitted, the copy is placed in the same folder as the original.

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googledocs_create_comment#Add a comment to a Google Doc. Comments are managed through the Drive API. Optionally anchor the comment to a quoted section of the document.4 params▾

Add a comment to a Google Doc. Comments are managed through the Drive API. Optionally anchor the comment to a quoted section of the document.

NameTypeRequiredDescription

contentstringrequiredThe plain-text content of the comment

document_idstringrequiredThe ID of the Google Doc to comment on

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googledocs_create_document#Create a new blank Google Doc with an optional title. Returns the new document's ID and metadata.3 params▾

Create a new blank Google Doc with an optional title. Returns the new document's ID and metadata.

NameTypeRequiredDescription

schema_versionstringoptionalOptional schema version to use for tool execution

titlestringoptionalTitle of the new document

tool_versionstringoptionalOptional tool version to use for execution

googledocs_create_named_range#Create a named range over a span of content in a Google Doc. Named ranges let you reference and update a region of the document later by name.6 params▾

Create a named range over a span of content in a Google Doc. Named ranges let you reference and update a region of the document later by name.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc to edit

end_indexintegerrequiredEnd index of the range (exclusive)

namestringrequiredName for the range. Multiple ranges can share the same name.

start_indexintegerrequiredZero-based start index of the range (inclusive)

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googledocs_create_paragraph_bullets#Turn the paragraphs in a range into a bulleted or numbered list using a preset glyph pattern.6 params▾

Turn the paragraphs in a range into a bulleted or numbered list using a preset glyph pattern.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc to edit

end_indexintegerrequiredEnd index of the paragraph range (exclusive)

start_indexintegerrequiredZero-based start index of the paragraph range (inclusive)

bullet_presetstringoptionalThe bullet glyph preset. Use a BULLET_* preset for unordered lists or a NUMBERED_* preset for ordered lists.

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googledocs_delete_comment#Permanently delete a comment from a Google Doc. Comments are managed through the Drive API. This cannot be undone.4 params▾

Permanently delete a comment from a Google Doc. Comments are managed through the Drive API. This cannot be undone.

NameTypeRequiredDescription

comment_idstringrequiredThe ID of the comment to delete

document_idstringrequiredThe ID of the Google Doc that holds the comment

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googledocs_delete_content_range#Delete content between two character indexes in a Google Doc. The start index is inclusive and the end index is exclusive.5 params▾

Delete content between two character indexes in a Google Doc. The start index is inclusive and the end index is exclusive.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc to edit

end_indexintegerrequiredEnd index of the range to delete (exclusive)

start_indexintegerrequiredZero-based start index of the range to delete (inclusive)

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googledocs_delete_named_range#Delete named ranges from a Google Doc. Provide a named range ID to remove one specific range, or a name to remove all ranges sharing that name. The underlying document content is not deleted.5 params▾

Delete named ranges from a Google Doc. Provide a named range ID to remove one specific range, or a name to remove all ranges sharing that name. The underlying document content is not deleted.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc to edit

namestringoptionalThe name of the range(s) to delete. All named ranges with this name are removed.

named_range_idstringoptionalThe ID of a specific named range to delete. Takes precedence over name when both are provided.

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googledocs_delete_paragraph_bullets#Remove list bullets or numbering from the paragraphs in a range, converting them back to normal paragraphs.5 params▾

Remove list bullets or numbering from the paragraphs in a range, converting them back to normal paragraphs.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc to edit

end_indexintegerrequiredEnd index of the paragraph range (exclusive)

start_indexintegerrequiredZero-based start index of the paragraph range (inclusive)

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googledocs_export_document#Export a Google Doc to another format such as PDF, plain text, HTML, Word (.docx), RTF, or EPUB. Uses the Drive API export endpoint. Exported files are limited to 10 MB.4 params▾

Export a Google Doc to another format such as PDF, plain text, HTML, Word (.docx), RTF, or EPUB. Uses the Drive API export endpoint. Exported files are limited to 10 MB.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc to export

mime_typestringrequiredThe MIME type of the target export format

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googledocs_insert_inline_image#Insert an inline image from a publicly accessible URL into a Google Doc. Optionally set the image width and height in points. Provide an index to insert at that position, or omit it to append at the end of the document body.7 params▾

Insert an inline image from a publicly accessible URL into a Google Doc. Optionally set the image width and height in points. Provide an index to insert at that position, or omit it to append at the end of the document body.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc to edit

image_uristringrequiredPublicly accessible URL of the image to insert (PNG, JPEG, or GIF, max 50 MB / 25 megapixels)

height_ptnumberoptionalImage height in points

indexintegeroptionalZero-based character index at which to insert the image. Omit to append at the end of the document body.

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

width_ptnumberoptionalImage width in points

googledocs_insert_page_break#Insert a page break into a Google Doc. Provide an index to insert at that position, or omit it to append at the end of the document body.4 params▾

Insert a page break into a Google Doc. Provide an index to insert at that position, or omit it to append at the end of the document body.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc to edit

indexintegeroptionalZero-based character index at which to insert the page break. Omit to append at the end of the document body.

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googledocs_insert_table#Insert an empty table with the given number of rows and columns into a Google Doc. Provide an index to insert at that position, or omit it to append at the end of the document body.6 params▾

Insert an empty table with the given number of rows and columns into a Google Doc. Provide an index to insert at that position, or omit it to append at the end of the document body.

NameTypeRequiredDescription

columnsintegerrequiredNumber of columns in the table

document_idstringrequiredThe ID of the Google Doc to edit

rowsintegerrequiredNumber of rows in the table

indexintegeroptionalZero-based character index at which to insert the table. Omit to append at the end of the document body.

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googledocs_insert_text#Insert text into a Google Doc at a specific location. Provide an index to insert at that position, or omit it to append at the end of the document body.5 params▾

Insert text into a Google Doc at a specific location. Provide an index to insert at that position, or omit it to append at the end of the document body.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc to edit

textstringrequiredThe text to insert

indexintegeroptionalZero-based character index at which to insert the text. Omit to append at the end of the document body.

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googledocs_list_comments#List the comments on a Google Doc, including their replies and resolved status. Comments are managed through the Drive API. Supports pagination.7 params▾

List the comments on a Google Doc, including their replies and resolved status. Comments are managed through the Drive API. Supports pagination.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc whose comments to list

include_deletedbooleanoptionalWhether to include deleted comments. Deleted comments have their content and author stripped. Defaults to false.

page_sizeintegeroptionalMaximum number of comments to return per page (1-100, default 20)

page_tokenstringoptionalToken for retrieving the next page of results. Use the nextPageToken from a previous response.

schema_versionstringoptionalOptional schema version to use for tool execution

start_modified_timestringoptionalOnly return comments modified after this RFC 3339 timestamp

tool_versionstringoptionalOptional tool version to use for execution

googledocs_list_documents#List all Google Docs documents in the user's Drive. Optionally search by document name. Returns document IDs, names, and metadata with pagination support.4 params▾

List all Google Docs documents in the user's Drive. Optionally search by document name. Returns document IDs, names, and metadata with pagination support.

NameTypeRequiredDescription

order_bystringoptionalSort order for results. Examples: modifiedTime desc, name asc, createdTime desc

page_sizeintegeroptionalNumber of documents to return per page (max 1000, default 100)

page_tokenstringoptionalToken for retrieving the next page of results. Use the nextPageToken from a previous response.

querystringoptionalDrive search query to filter documents. Defaults to all Google Docs. To search by name, use: mimeType = 'application/vnd.google-apps.document' and trashed = false and name contains 'report'

googledocs_read_document#Read the complete content and structure of a Google Doc including text, formatting, tables, and metadata.4 params▾

Read the complete content and structure of a Google Doc including text, formatting, tables, and metadata.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc to read

schema_versionstringoptionalOptional schema version to use for tool execution

suggestions_view_modestringoptionalHow suggestions are rendered in the response

tool_versionstringoptionalOptional tool version to use for execution

googledocs_replace_all_text#Find every occurrence of a text string in a Google Doc and replace it with new text. Useful for templating and bulk edits.6 params▾

Find every occurrence of a text string in a Google Doc and replace it with new text. Useful for templating and bulk edits.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc to edit

find_textstringrequiredThe exact text to search for

replace_textstringrequiredThe text to substitute for each match

match_casebooleanoptionalWhether the search is case-sensitive. Defaults to false.

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googledocs_reply_to_comment#Post a reply to an existing comment on a Google Doc. Comments and replies are managed through the Drive API.5 params▾

Post a reply to an existing comment on a Google Doc. Comments and replies are managed through the Drive API.

NameTypeRequiredDescription

comment_idstringrequiredThe ID of the comment to reply to

contentstringrequiredThe plain-text content of the reply

document_idstringrequiredThe ID of the Google Doc that holds the comment

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googledocs_resolve_comment#Resolve an open comment on a Google Doc by posting a resolving reply. Comments are managed through the Drive API. Optionally include reply text alongside the resolution.5 params▾

Resolve an open comment on a Google Doc by posting a resolving reply. Comments are managed through the Drive API. Optionally include reply text alongside the resolution.

NameTypeRequiredDescription

comment_idstringrequiredThe ID of the comment to resolve

document_idstringrequiredThe ID of the Google Doc that holds the comment

contentstringoptionalOptional reply text to post along with the resolution

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googledocs_update_document#Update the content of an existing Google Doc using batch update requests. Supports inserting and deleting text, formatting, tables, and other document elements.5 params▾

Update the content of an existing Google Doc using batch update requests. Supports inserting and deleting text, formatting, tables, and other document elements.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc to update

requestsarrayrequiredArray of update requests to apply to the document

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

write_controlobjectoptionalOptional write control for revision management

googledocs_update_paragraph_style#Apply paragraph-level formatting to a range: set a named style such as a heading or title, and/or set text alignment. Use this to turn text into a heading.7 params▾

Apply paragraph-level formatting to a range: set a named style such as a heading or title, and/or set text alignment. Use this to turn text into a heading.

NameTypeRequiredDescription

document_idstringrequiredThe ID of the Google Doc to edit

end_indexintegerrequiredEnd index of the paragraph range (exclusive)

start_indexintegerrequiredZero-based start index of the paragraph range (inclusive)

alignmentstringoptionalParagraph alignment

named_style_typestringoptionalNamed paragraph style to apply (e.g. a heading level, title, or normal text)

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution
